Draw the edge of the danger zone in light. A visible warning boundary projected onto the floor from cranes, trucks and fixed points, with no paint required.
- Crane light curtain
- Line curtain
- Symbol and text projection
- Automatic triggering

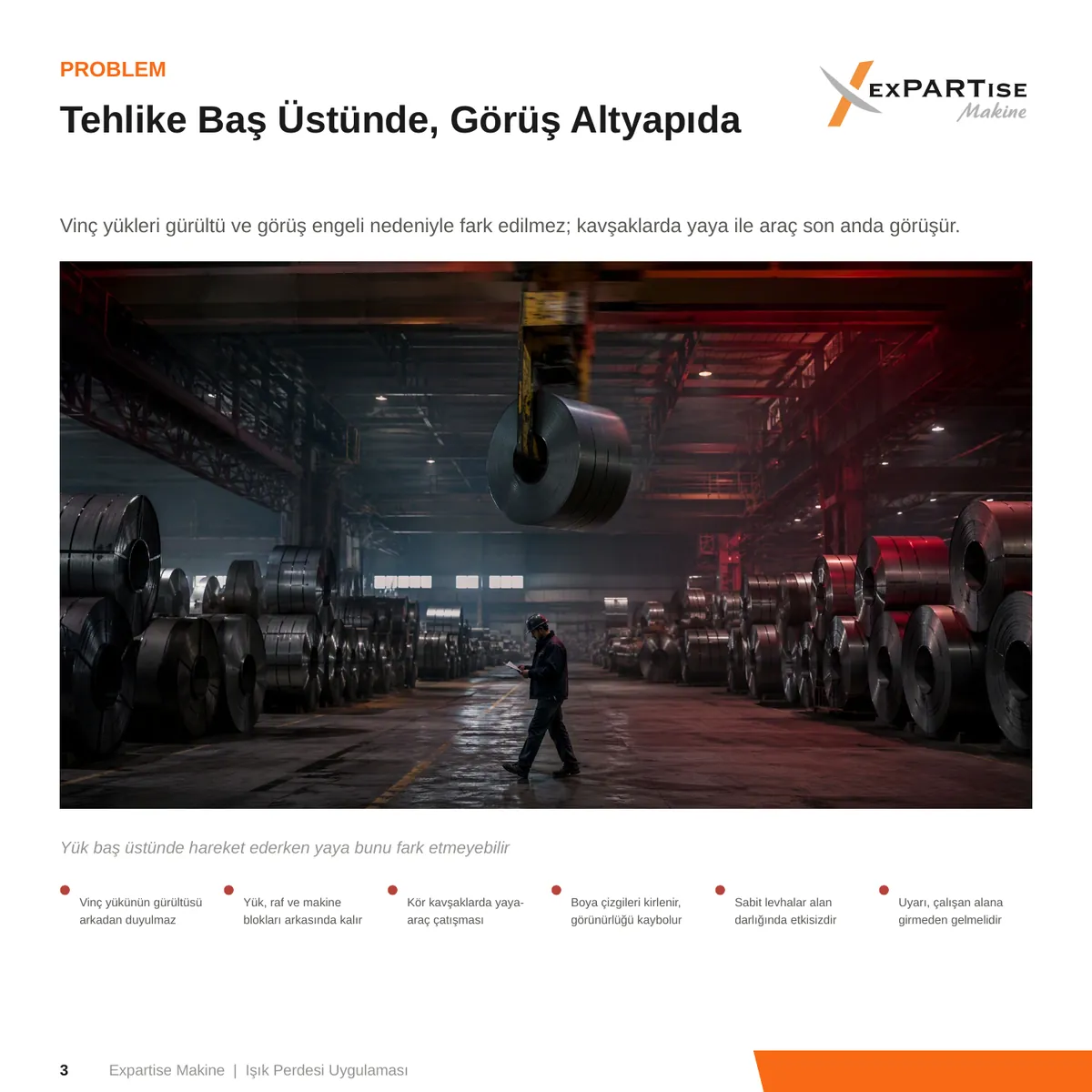

The hazard is overhead, so the warning belongs on the floor

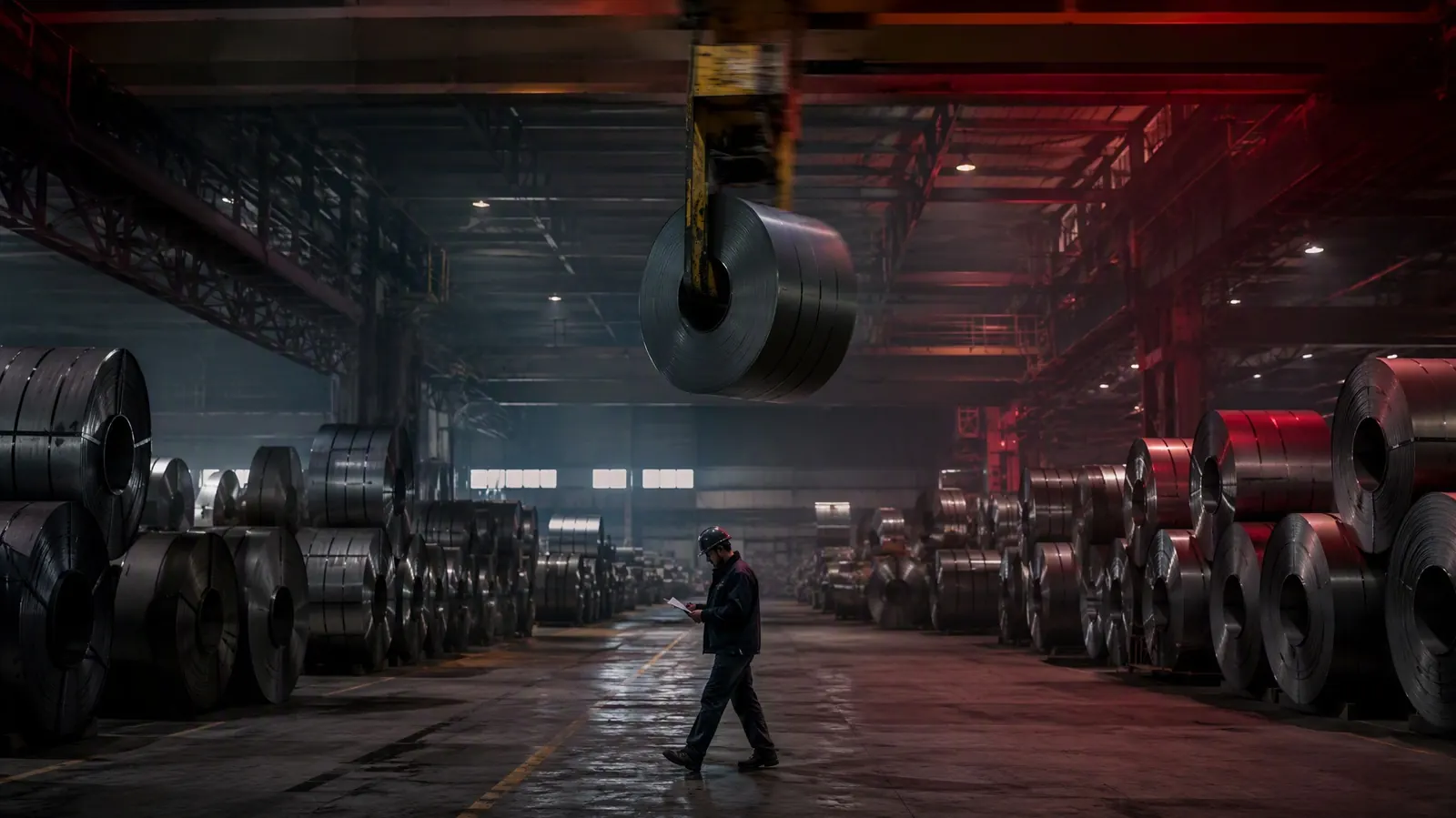

Crane loads often go unnoticed because of noise and blocked sightlines, and at blind junctions pedestrians and trucks meet at the last moment.
A light curtain puts the warning where people are already looking: on the floor. Unlike painted lines it does not get dirty or wear away, and it moves when it needs to.
- Crane: the light boundary travels with the crane.
- Truck: a red line falls 3–5 m ahead in the direction of travel.
- Fixed point: large warning symbols are projected at doorways and junctions.
The warning has to arrive before the person enters the area
Fixed signs have little effect in tight spaces, and painted lines get dirty and lose their visibility.
- A crane load cannot be heard from behind.
- The load disappears behind racking and blocks of machinery.
- Pedestrians and trucks come into conflict at blind junctions.
- Painted lines get dirty and signs stop catching the eye.
- The area beneath the load is marked out in light, warning pedestrians before they step into it.
- A line projected ahead of the truck announces its approach in advance.
- High-visibility symbols are projected at doorways and crossings.
- No paint and no extra infrastructure are needed.
Three scenarios, one safety language
Every scenario is built on the same compact projection unit, with different optics and mounting options.

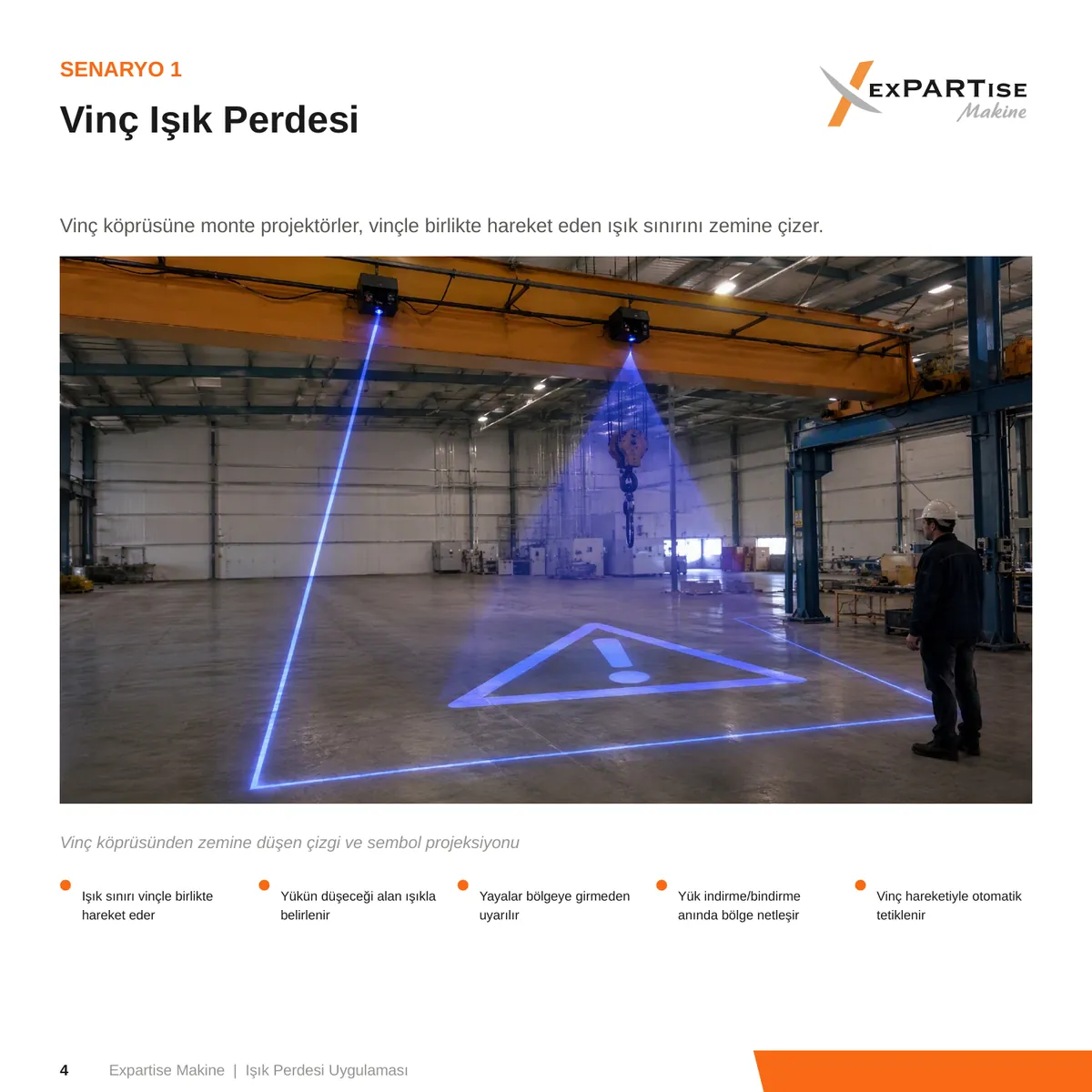

Crane light curtain

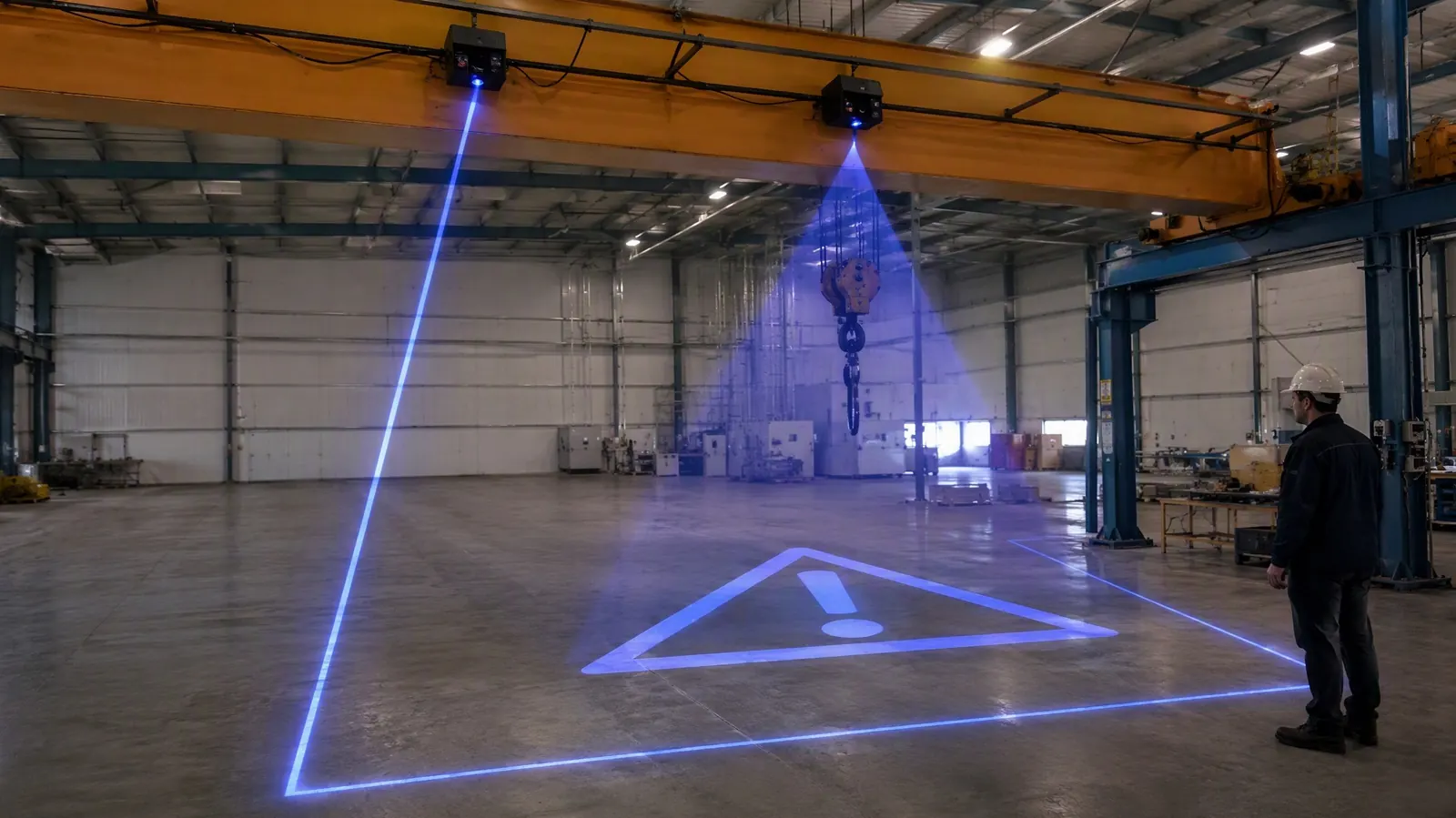

Projectors mounted on the crane bridge draw a light boundary on the floor that travels with the crane and is triggered automatically by crane movement.

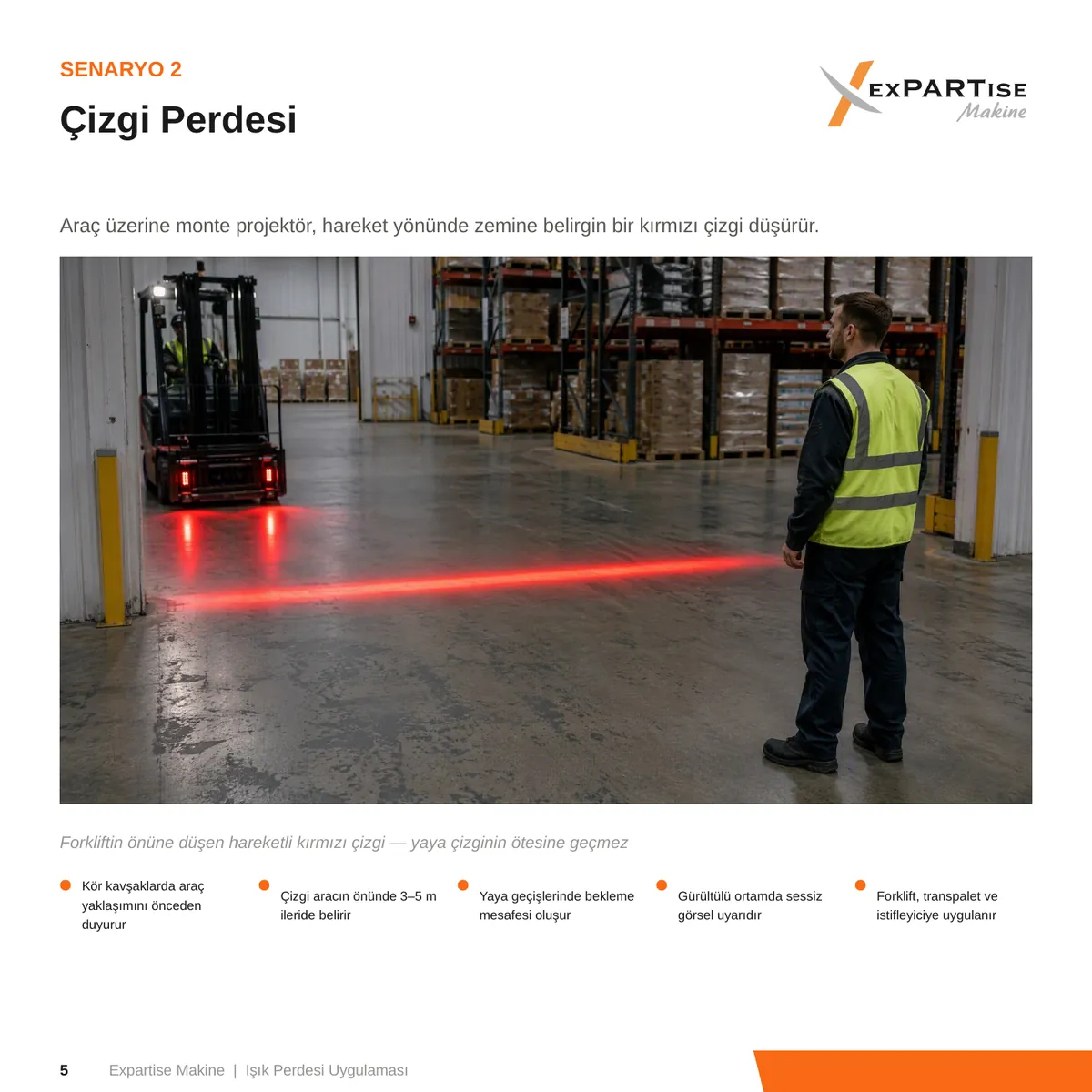

Line curtain
A projector fitted to a forklift truck, pallet truck or stacker casts a clear red line onto the floor in the direction of travel.
Symbol and text projection

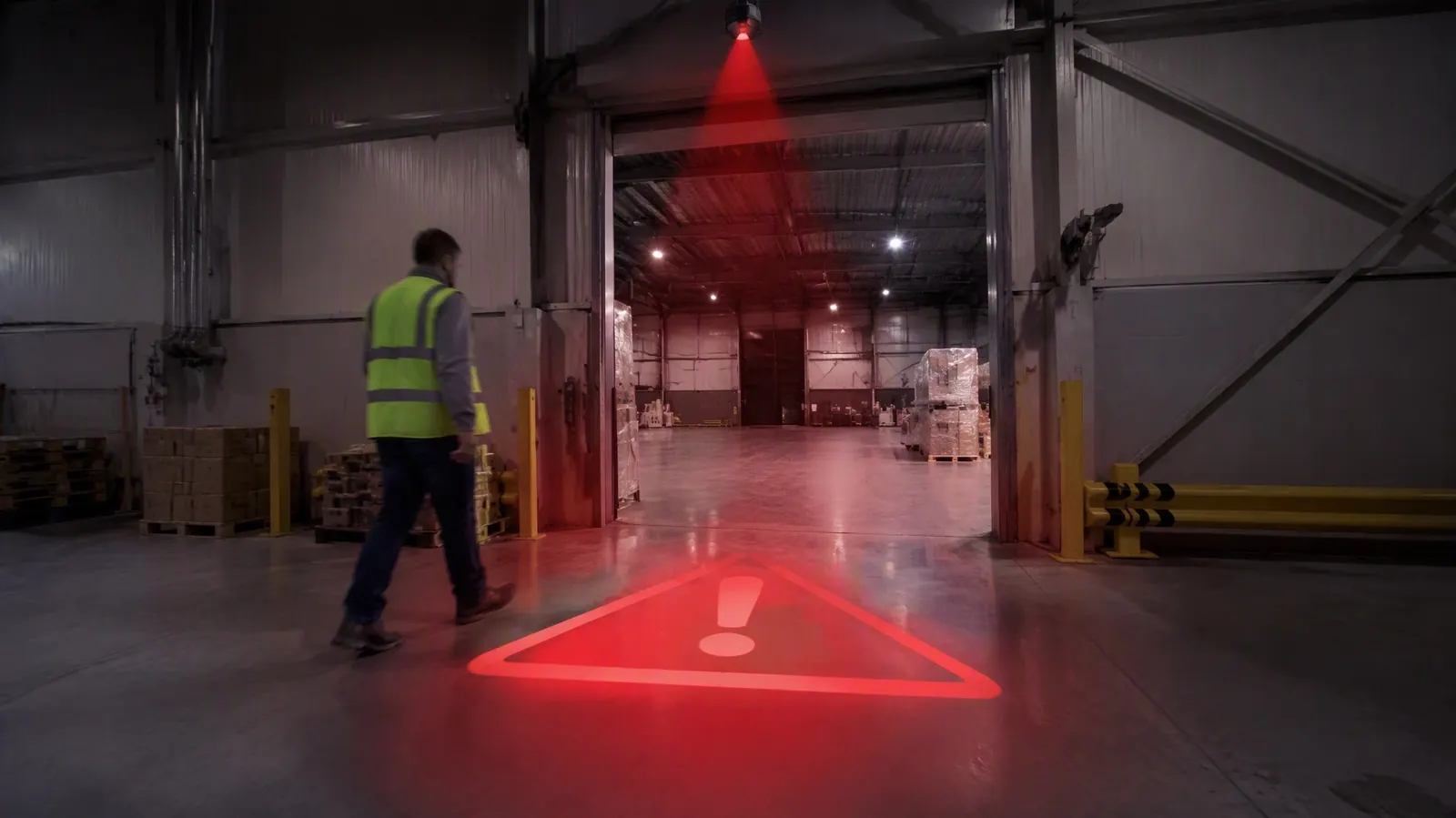

Projectors with gobo optics cast a warning triangle, pictogram, logo or short text at doorways, junctions and around machinery.

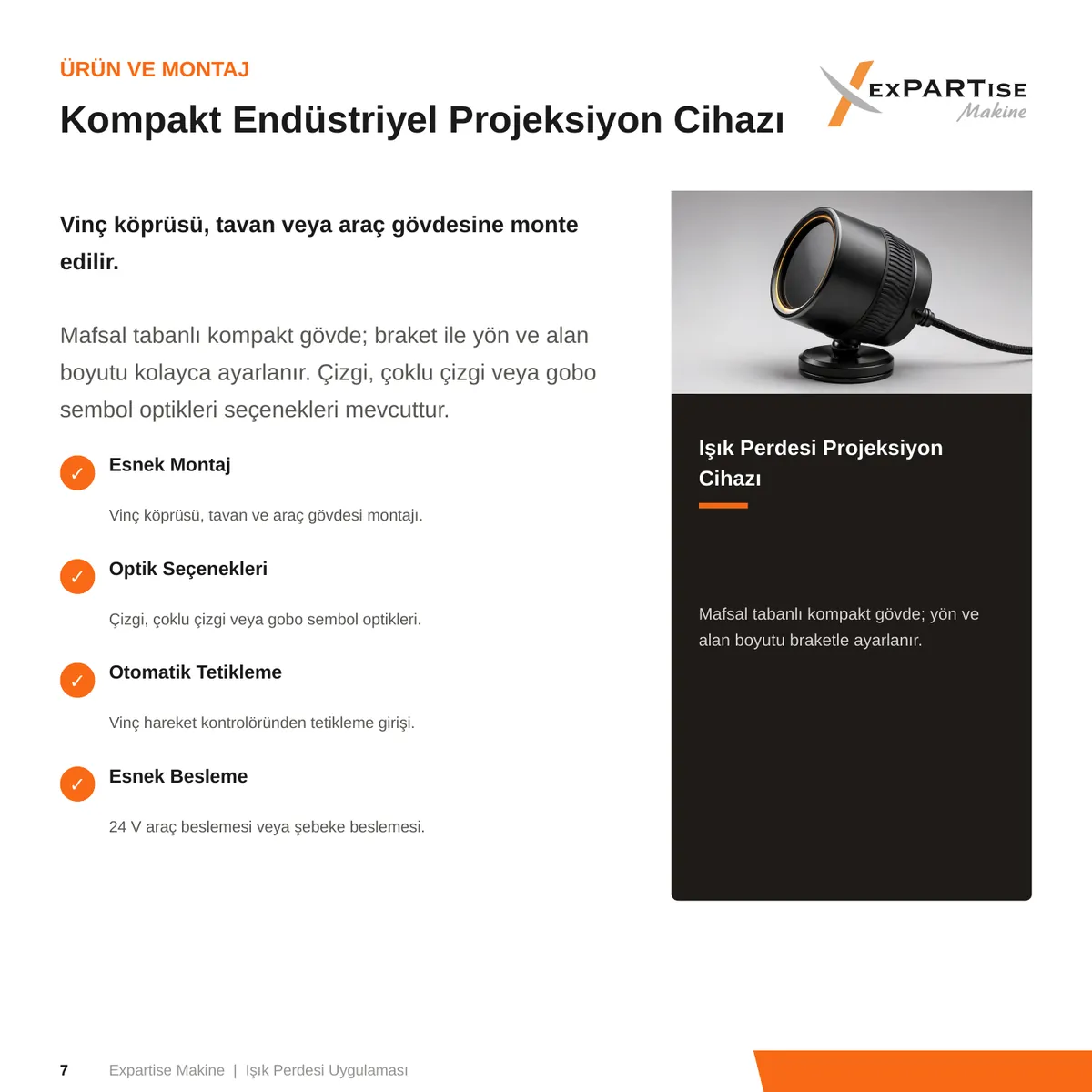

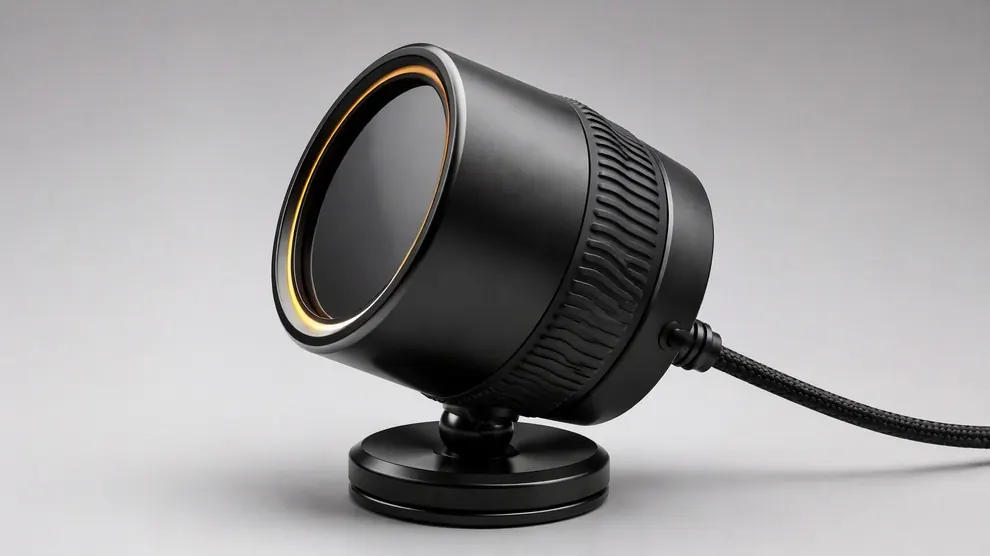

A compact industrial projection unit
It mounts on the crane bridge, the ceiling or the body of a truck, and the bracket makes direction and coverage easy to adjust.
Flexible mounting
Crane bridge, ceiling and truck body mounting.
Optics options
Single line, multi-line or gobo symbol optics.
Automatic triggering
Trigger input from the crane motion controller.
Flexible power supply
24 V truck supply or mains supply.
The scenarios in practice
The same safety language under a crane, ahead of a truck and at a doorway.

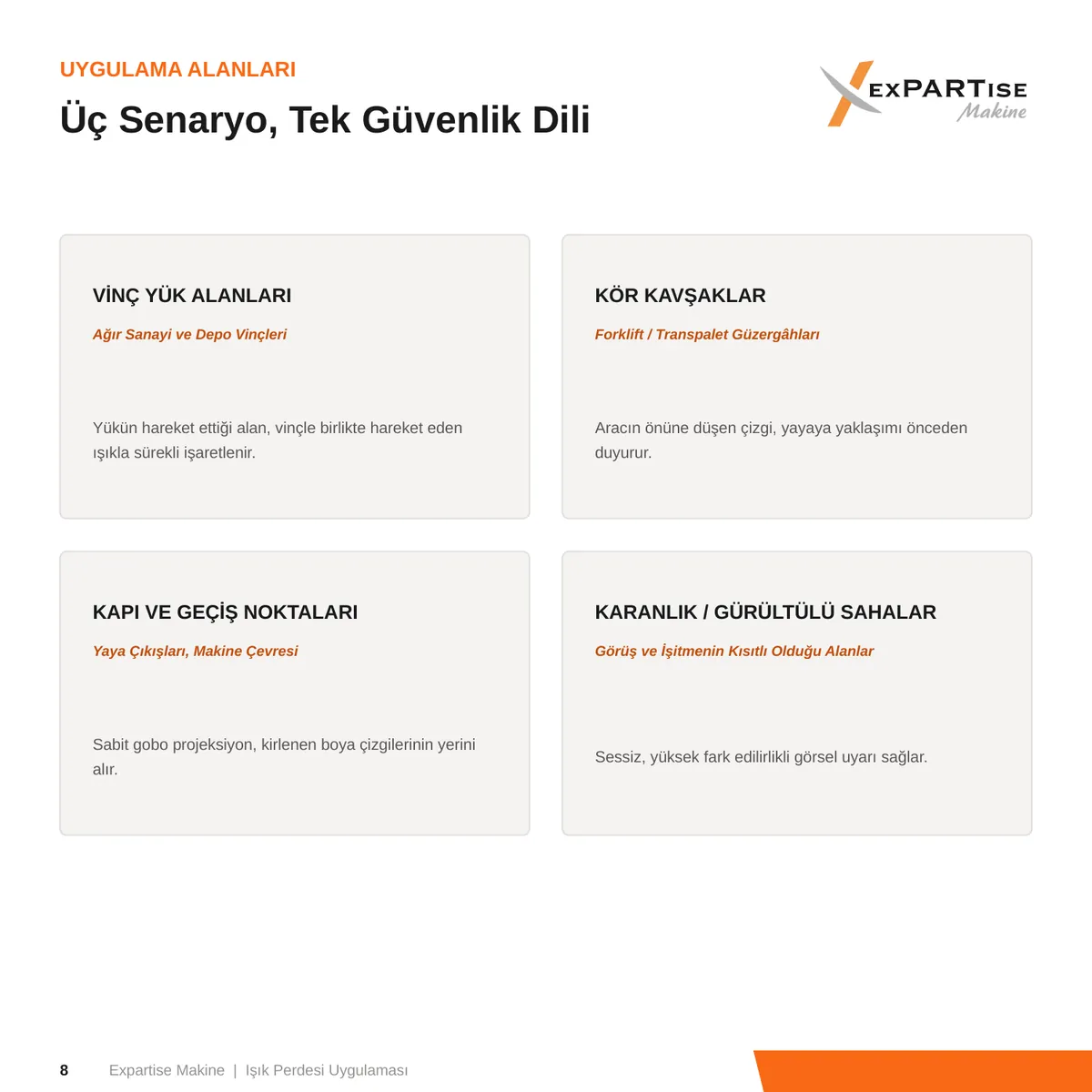

Where it is used
Crane Load Areas
The area the load moves through is marked continuously and follows the crane.
Blind Junctions
A line projected ahead of the truck announces its approach in advance.
Doorways and Crossing Points
Fixed gobo projection replaces painted lines that get dirty.
Dark and Noisy Sites
It gives a silent but highly noticeable visual warning.
Explore the Solution Slide by Slide
The full product presentation we shared on LinkedIn. Scroll through it, and click a slide to enlarge.
Draw the edge of the danger zone in light.
- The crane load zone becomes clearly visible in light.
- Pedestrians are warned before they enter the danger zone.
- At blind junctions an approaching truck is seen in advance.
- No paint or infrastructure is needed, and nothing gets dirty.
As an authorised STILL Arser dealer and service partner we run the whole process from a single point of contact: site analysis, installation, operator training and after-sales support.
